Granule and Powder Fluid Dryer
|Payment Type:||L/C,T/T,Western Union|
|Terms of Trade:||FOB|
|Min. Order:||1 Set/Sets|
|Delivery Time:||40 Days|
|Productivity:||10-15 Set per Year|
|Place of Origin:||China|
|Supply Ability:||3-5 Set/Sets per Month|
Model No.: GFG

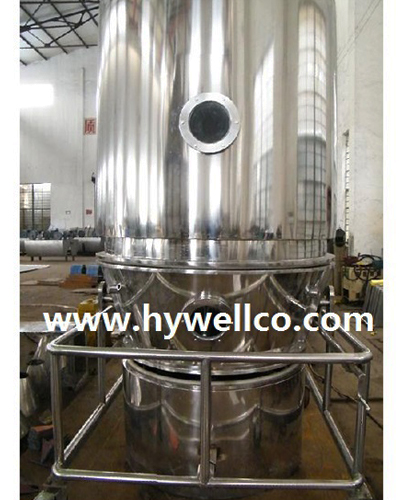

Granule and Powder Fluid Dryer
Granule Fluid Dryer Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber of Fluid Dryer Machine, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly
1. Powder Fluid Dryer Inlet air system
The inlet air system consists of Primary filter(G4), Post filter (F8), high efficiency filter(H13 -optional)and heater with accurate temperature control. The inlet air flow, speed and pressure is variable and controllable. For the heater , it can be steam radiator ,electrical heater , gas furnace and so on .
2. Main Machine Structure
The main body structure consists of bottom bowl, movable product bowl with trolley , fluidized chamber, expansion chamber/filter housing. The bottom bowl, product container and fluidized chamber are inflatable silicon gasket sealed with compress air inspection sensor to assure the reliable sealing.
3. Product filter
The structured bag filter in one pieces (in case request, stainless steel filter available) is inflatable silicon gasket sealed between the expansion chamber inner surfaces with compress air inspection sensor to assure the reliable sealing. A dust sensor is mounted on the exhaust piping and interlocked from control sys to secure the product safety during processing stage.
4. Exhaust sir system
The exhaust dust collection filter is optionally designed for protect environment.
Granule and Powder Fluid Dryer Features
1. The structure of fluid bed is round so as to avoid the dead angle
2. The main machine is designed 20% higher than common design, the fluidizing space is expanded to guarantee the flow height of material so that the load of bag deduster be effectively decreased.
Fluid Dryer Machine Principle
When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Fluid Dryer Machine Application
1. Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feed stuff, chemical industries and so on
2. Use screw to extrude and vibrate granule and granulate the granule with the method of humidity, high speed and mixing
3. The raw material that large in granule and small in block and having adhesive property
4. Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.
Main Technical Parameter:
|inlet air temp(ºC)||50-100||50-100||50-100||50-100||50-100|
